Update Notes (v2.3.3)

- Minor bug fixes

- Improvements to switching between D&D Mode and Modeling Mode

- .mmj example files revised and new ones added (from 31 to 44)

※ The update can be applied by downloading and installing it. (Previous version: v2.3.1)

This is the MALMIJAL-M Basic User Manual.
Please refer to the video below.

- MALMIJAL-M Basic User Manual Full version

- MALMIJAL-M Basic User Manual Part 1: Top Menu Overview

- MALMIJAL-M Basic User Manual Part 2: Work Model

- MALMIJAL-M Basic User Manual Part 3: Graph Options

Update Details (v2.3.1)

- Minor Bug Fix

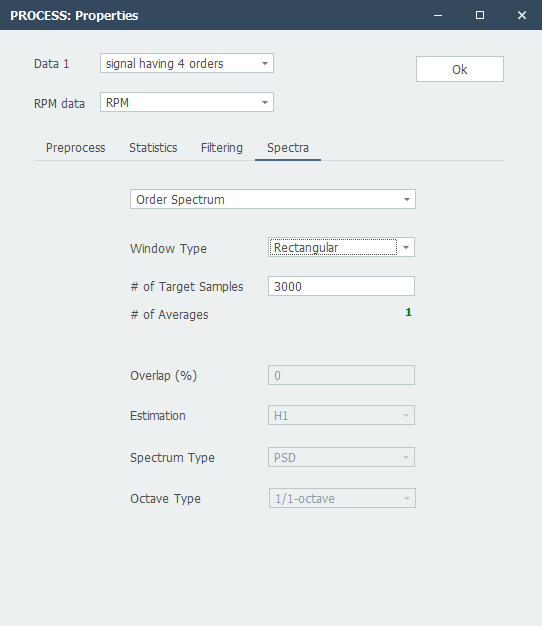

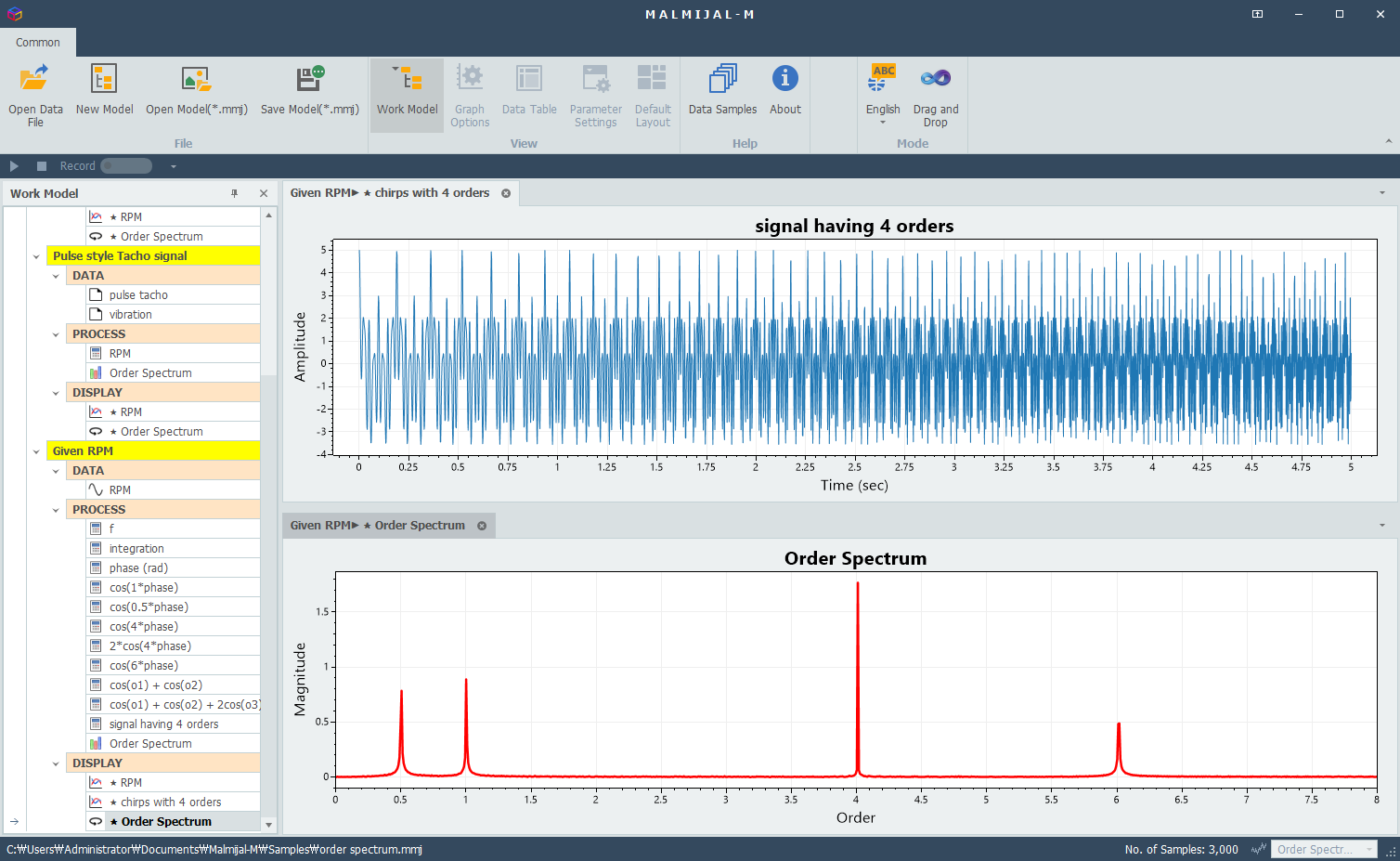

- Order spectrum Feature Added (Example file: order spectrum.mmj)

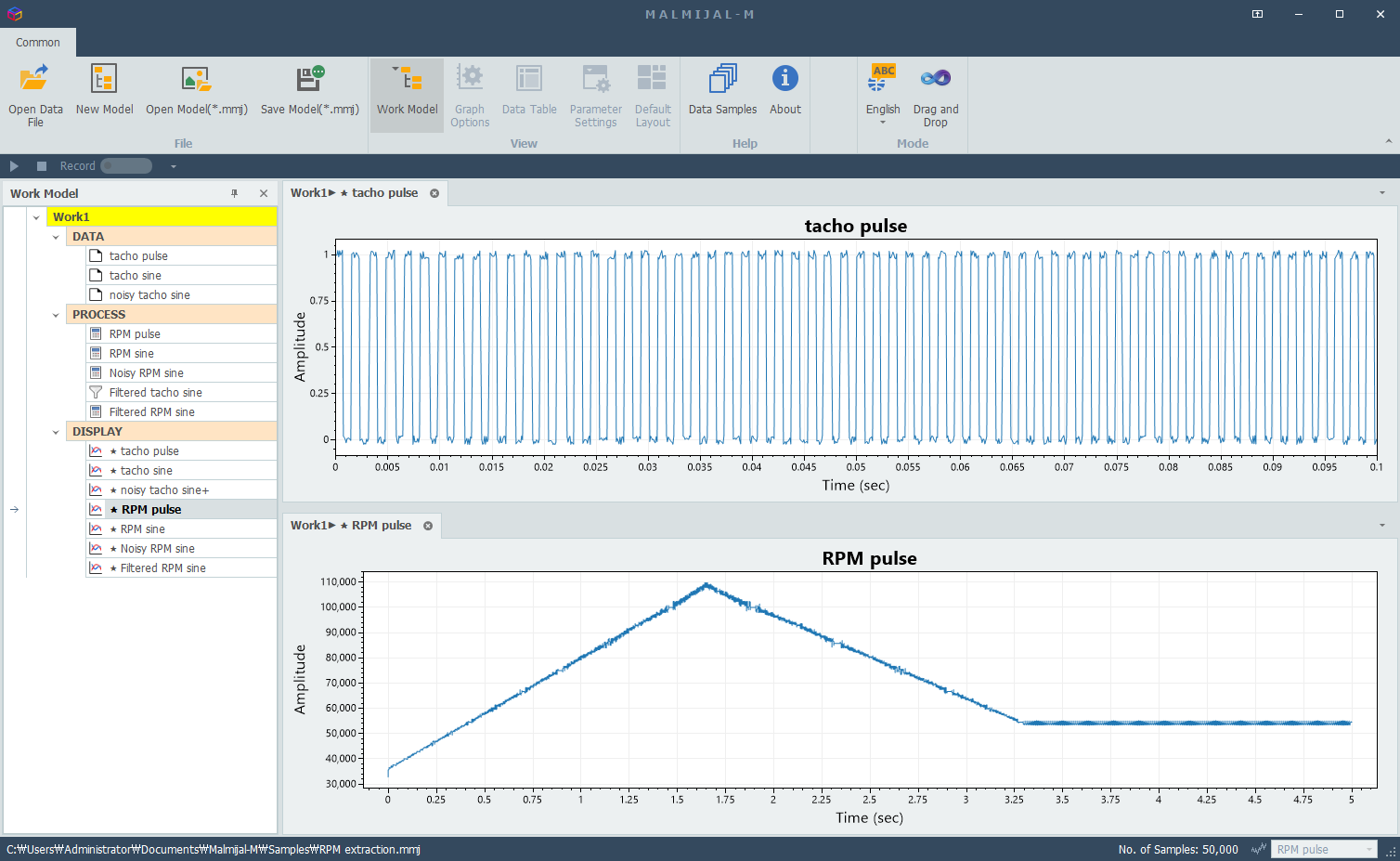

- RPM extraction Feature Added (Example file: RPM extraction.mmj)

※ To update, simply download and install it. (Previous version: v2.2.2)

MALMIJAL-M License Registration Method (OTP: One-Time Password Method)

1. Run the MALMIJAL-M icon

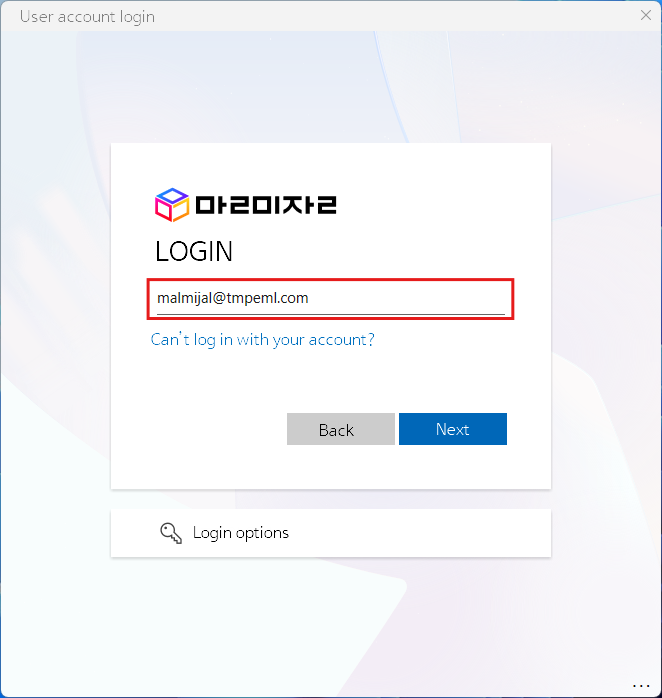

2. Log in to your user account (※ Enter the license email address provided in the additional information at the time of purchase)

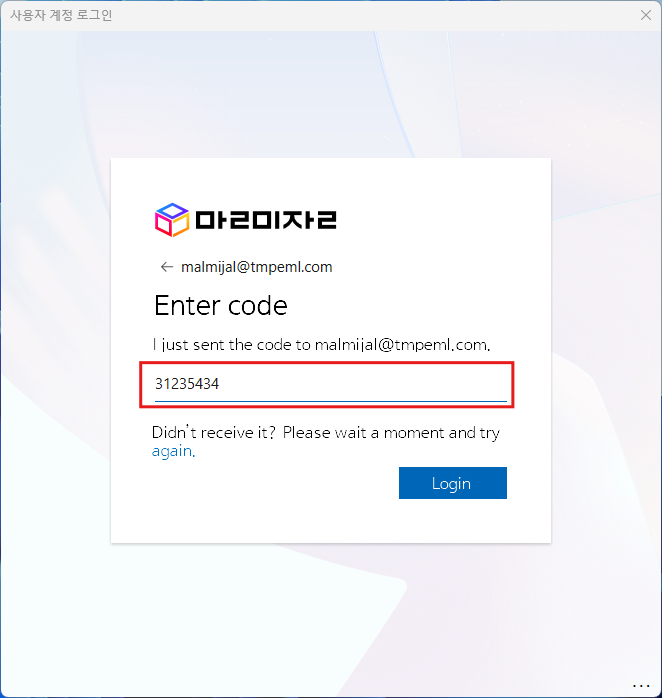

3. Enter the code sent to your license email

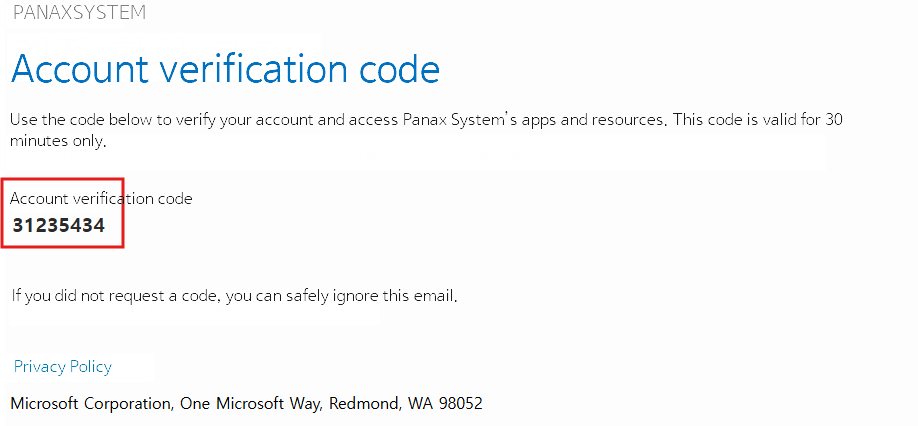

4. An account verification code (6–8 digits) will be sent to your email.

5. Log in after entering the code



6. Click Accept

7. Verify that MALMIJAL-M is running properly.

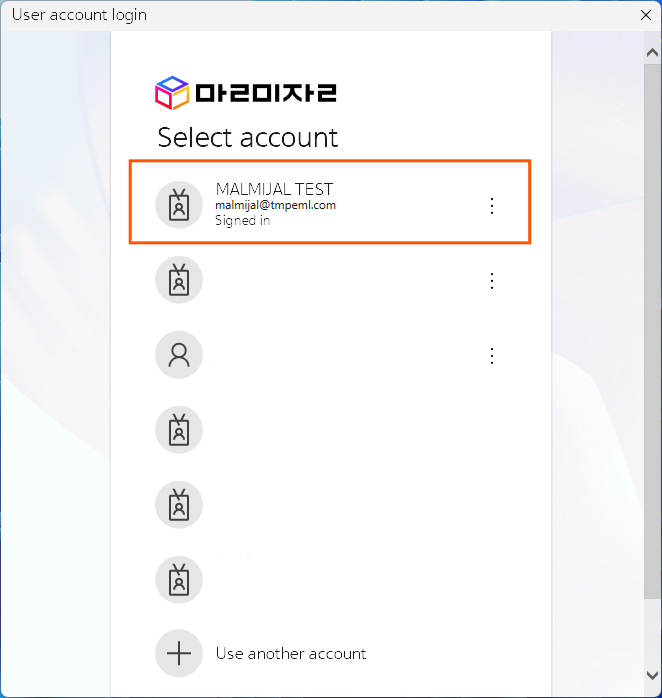

8. After closing and logging in again, select the saved license email to launch MALMIJAL.

Release of MALMIJAL-Modeling

Signal Processing Visualization Platform

- No code, No pain!

- Preprocessing, Statistics, Filtering, Frequency Analysis

- Intuitive signal-processing visualization

- Interactive modeling and analysis

- Ideal for signal-processing education and training

- Automated macro processing through signal-processing modeling — multi-data processing

Key Analysis Features

-Preprocessing

• Detrend

• Resampling

• Polynomial Fit

• Exponential Fit

• Arithmetic Operation

• Differentiation

• Integration

• Peak Finding

• Convolution

• Envelope Curve

- Statistics

• Descriptive Statistics

• Auto-correlation

• Cross-correlation

• IQR (Inter-Quartile Range)

• Z-score

• PCA (Principal Component Analysis)

- Filtering

• MA (Moving Average)

• EMA (Exponential Moving Average)

• FIR (Finite Impulse Response)

• IIR (Infinite Impulse Response)

- Frequency Analysis

• FFT (Fast Fourier Transform)

• Short-Time FT

• Power Spectrum

• Cross Spectrum

• PSD (Power Spectral Density)

• CSD (Cross Spectral Density)

• FRF (Frequency Response Function)

• Coherence

• Octave Band Analysis

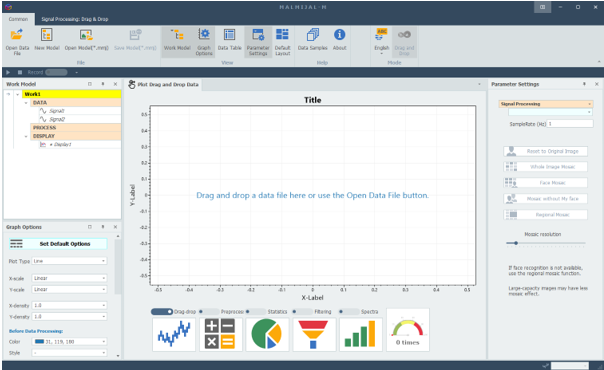

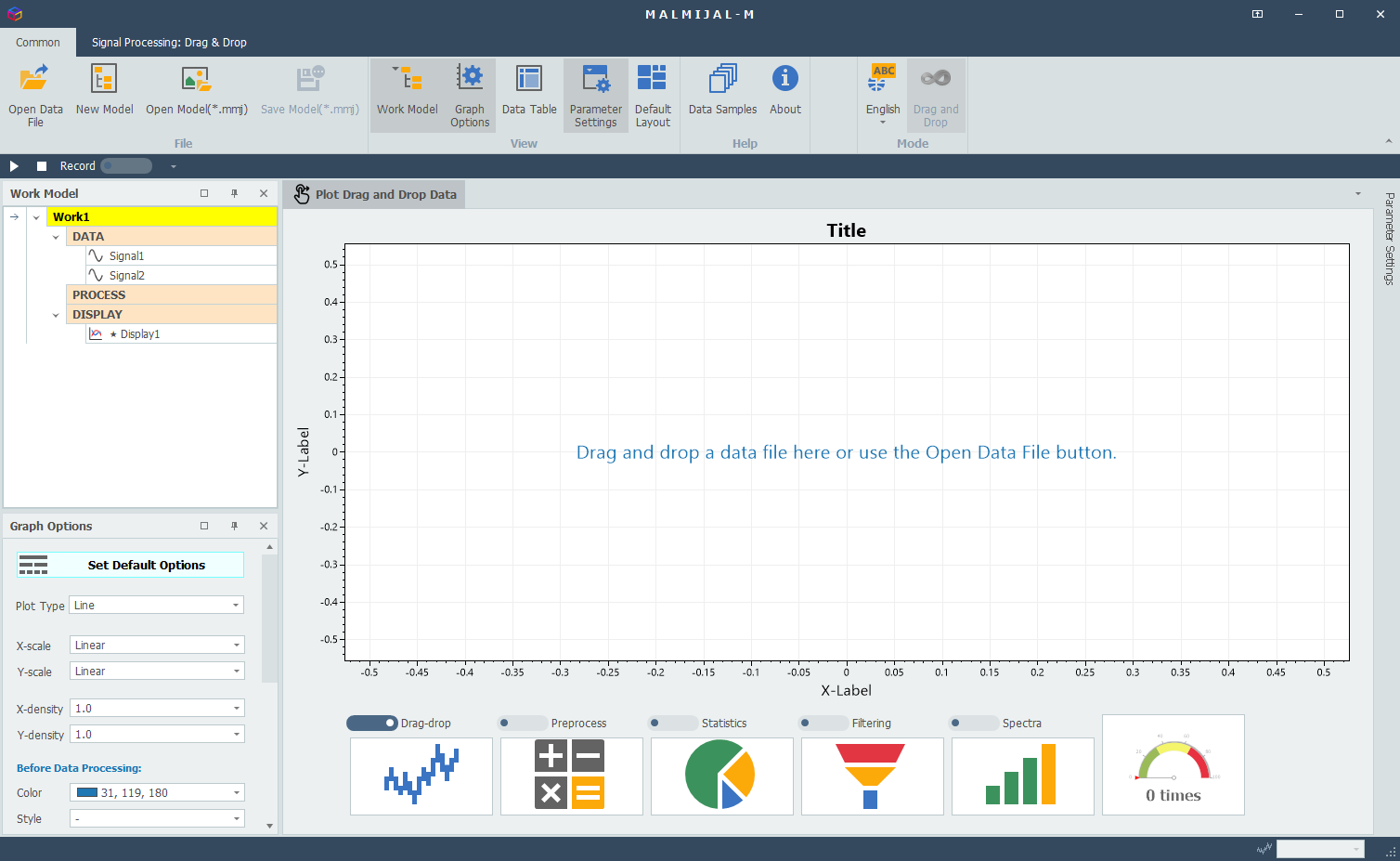

Drag & Drop Mode

- Easy data handling with drag-and-drop

- Intuitive, interactive interface

- Single-file processing Supported file types:

• Text files

• Binary files(*.xlsx, *.mat, image files such as *.jpg, audio files such as *.wav)

- View the Drag & Drop Mode tutorial video

Modeling Mode

- DATA → PROCESS → DISPLAY workflow for data-processing modeling

- Multi-channel, multi-file processing

- Save and load modeling configurations

- Customizable data processing and visualization

- View the Modeling Mode tutorial video
