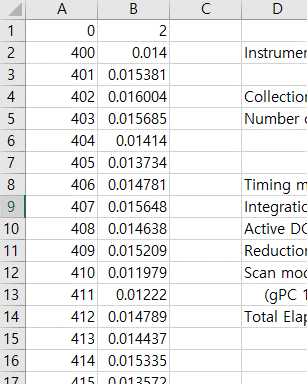

When you have the visible light range data as above, there are two ways. Please refer to the linked short form below for more information.
First (simple method):
1. View data drag drops and data tables
2. Right-click in the first row of the data table to run "Delete Select Row"
3. Done
In the case of increasing data with an equal range of 380 to 750 nm of X-axis data, the X-axis is automatically recognized as data on visible light wavelengths, and the above simple method is possible.
The second (typical method):
1. View data drag drops and data tables
2. Change the left 'Plot Type' to 'X,Y Graph'
3. Right-click in the first row of the data table to run "Delete Select Row"
4. Double-click the X-label to change it to 'Wave Length (nm)'.
5. Right-click on the graph screen to run "Graph Maximum Extension"
This video demonstrates checking Fast Fourier Transform( FFT) results using MATLAB and MALMIJAL. In MATLAB, verifying Fast Fourier Transform( FFT) results requires coding time and multiple steps, whereas with MALMIJAL, you can simply drag and drop to check the results easily.
You can use the MALMIJAL-M Trial version for 7 days.
- Download Malmijal-M (Cloud Authentication Version) from the link below: Download ⬅
- Check the installation guide: Installation Guide ⬅
After installing MALMIJAL-M, run the MALMIJAL-M icon on your desktop.

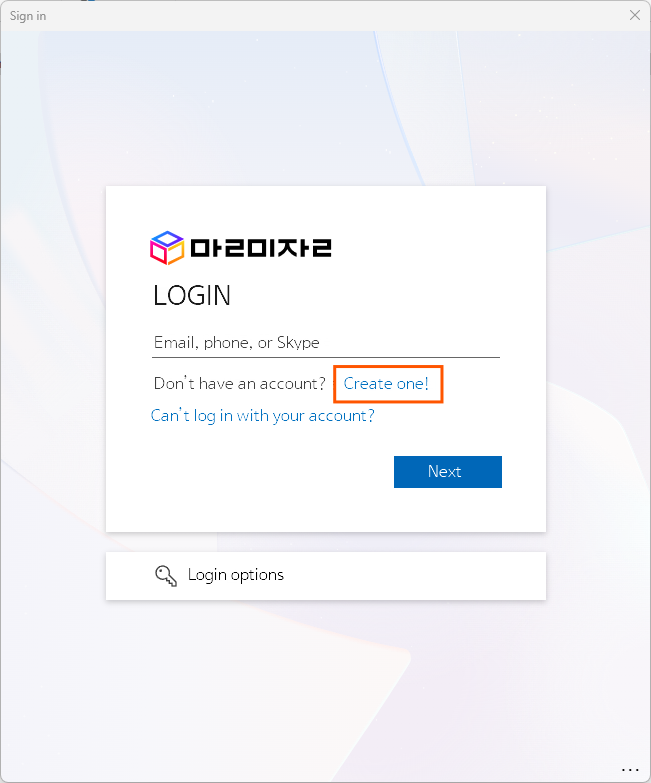

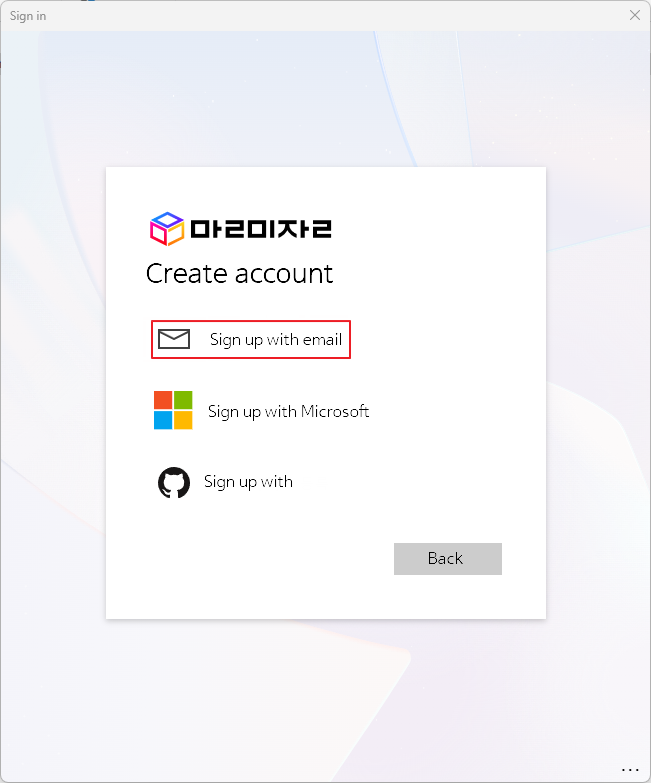

1. Create account
2. Sign up with email

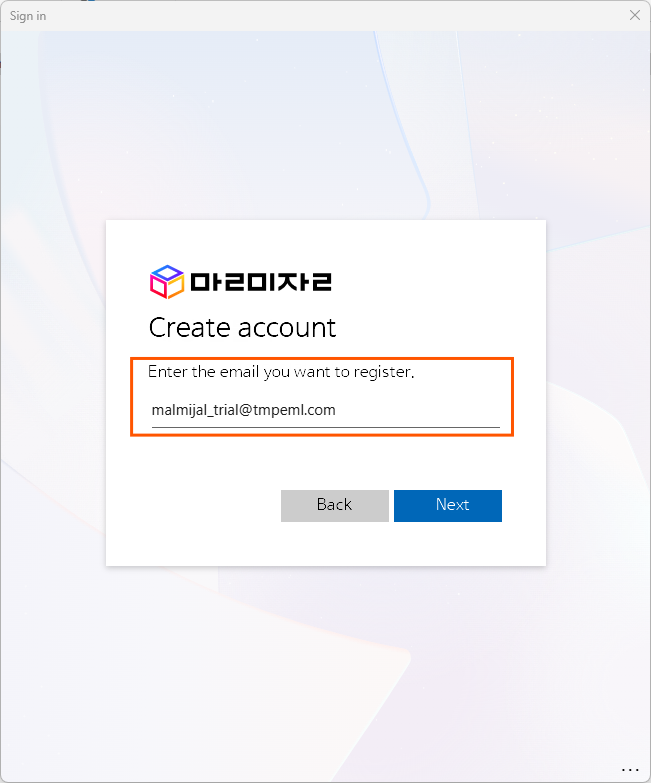

3. Register with email
4. Check your account verification code.

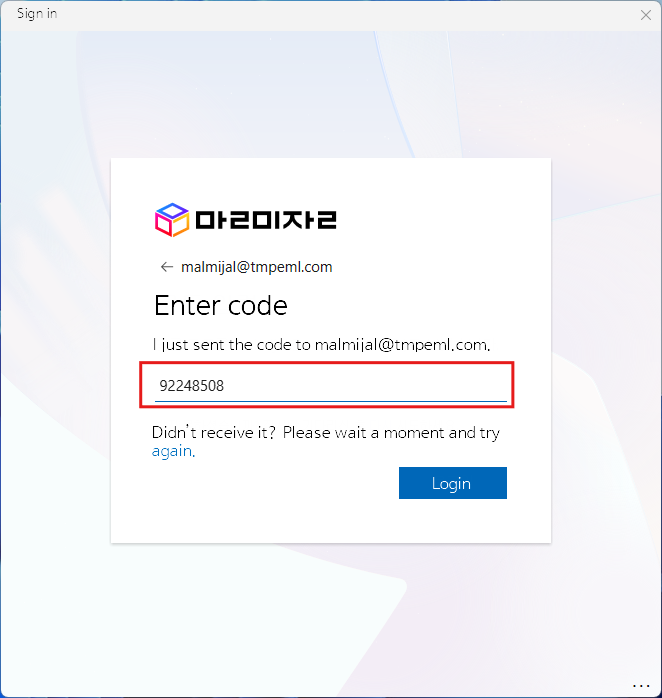

5. 코드 입력
6. Accept permissions

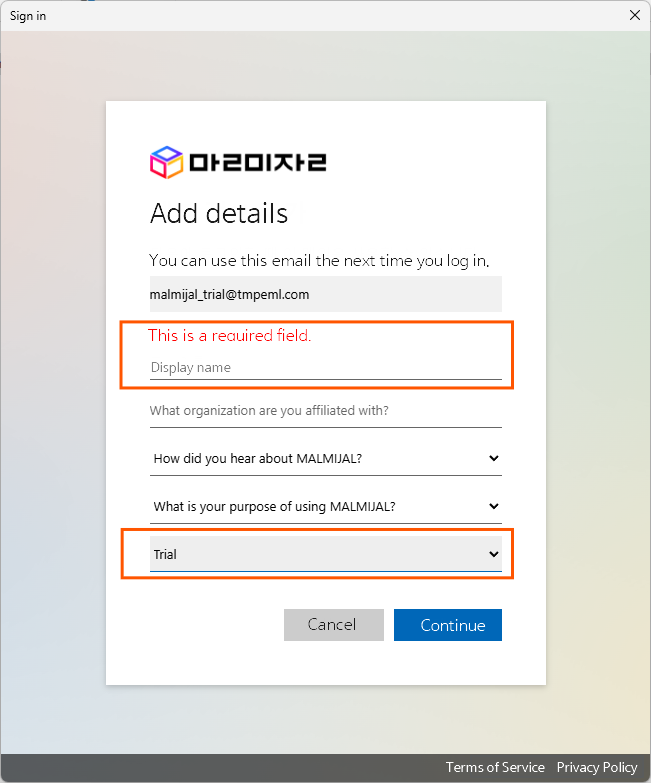

7. Enter a display name and select Trial (required fields).

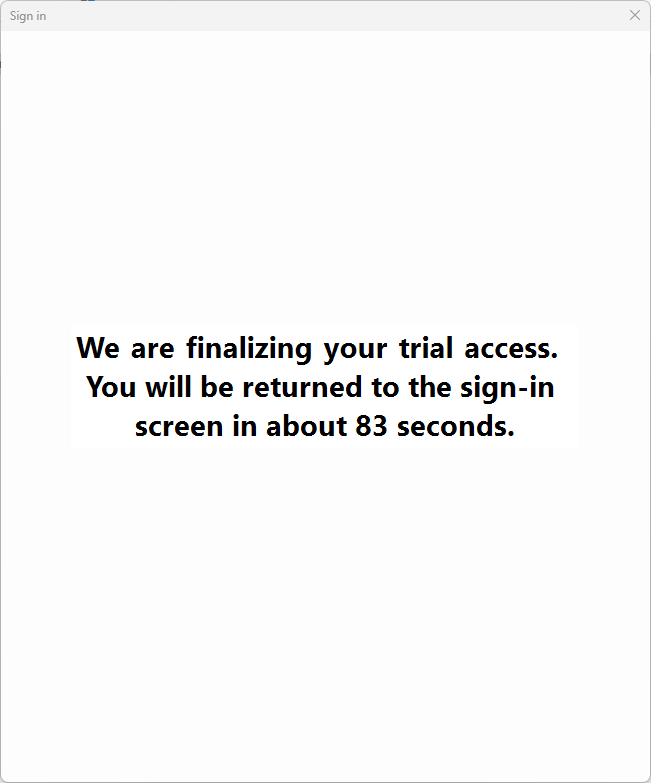

8. Registration pending

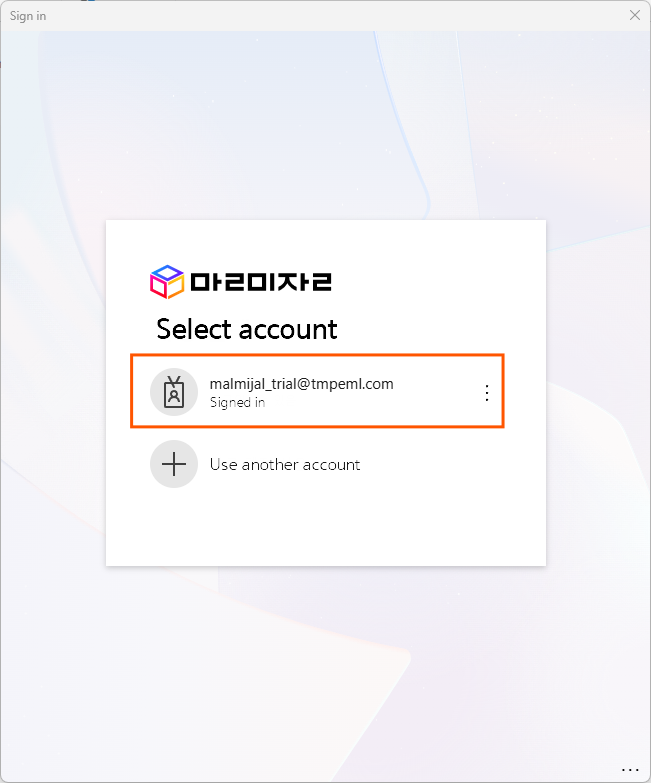

9. Select account
10. Verify that the trial version program is running.
※ Notice
The Trial version of MALMIJAL-M requires re-authentication with a new code each time you reconnect, as described in steps 4 and 5 above.
Licensed users only need to complete authentication once.
How to Install Malmijal-M
1. Click Download Malmijal-M
2. Download Malmijal-M (Cloud Authentication Version)
3. After downloading, extract the files.
4. Double-click the setup_Malmijal.msi file to run and install it.
This is the basic usage of MALMIJAL – Modeling.
Please refer to the video below.
MALMIJAL-M License Registration Method (OTP: One-Time Password Method)
1. Run the MALMIJAL-M icon
2. Log in to your user account (※ Enter the license email address provided in the additional information at the time of purchase)
3. Enter the code sent to your license email

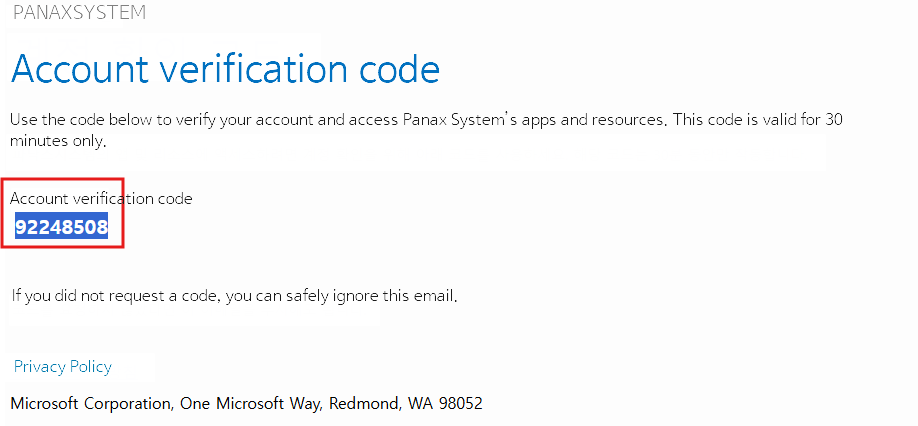

4. An account verification code (6–8 digits) will be sent to your email.
5. Log in after entering the code
6. Click Accept
7. Verify that MALMIJAL-M is running properly.
8. After closing and logging in again, select the saved license email to launch MALMIJAL.
When you have the visible light range data as above, there are two ways. Please refer to the linked short form below for more information.
First (simple method):
1. View data drag drops and data tables
2. Right-click in the first row of the data table to run "Delete Select Row"
3. Done
In the case of increasing data with an equal range of 380 to 750 nm of X-axis data, the X-axis is automatically recognized as data on visible light wavelengths, and the above simple method is possible.
The second (typical method):
1. View data drag drops and data tables
2. Change the left 'Plot Type' to 'X,Y Graph'
3. Right-click in the first row of the data table to run "Delete Select Row"
4. Double-click the X-label to change it to 'Wave Length (nm)'.
5. Right-click on the graph screen to run "Graph Maximum Extension"
6. Done
For example, refer to airfoil.dat in Data Samples.
Line graph: y0, y1 recognized as multiple y data.
XY graph: recognized as x, y1 data respectively.
This video demonstrates removing low-frequency background noise using a high-pass filter while whistling. Run MALMIJAL and follow along.
Yes, that's correct. Watch the video below and follow the steps to check theFast Fourier Transform (FFT) within one second using MALMIJAL.
This video demonstrates checking Fast Fourier Transform( FFT) results using MATLAB and MALMIJAL. In MATLAB, verifying Fast Fourier Transform( FFT) results requires coding time and multiple steps, whereas with MALMIJAL, you can simply drag and drop to check the results easily.

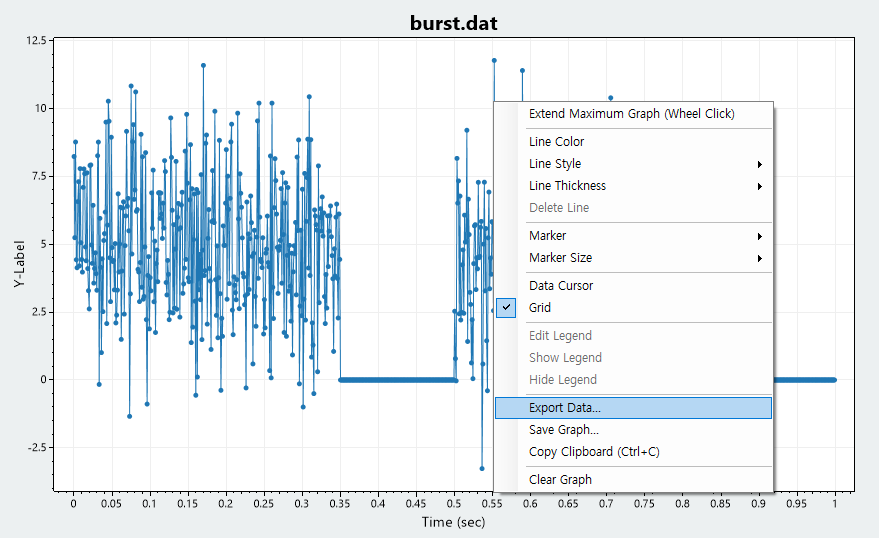

① Right-click on the Data Draw window, and select Export Data.

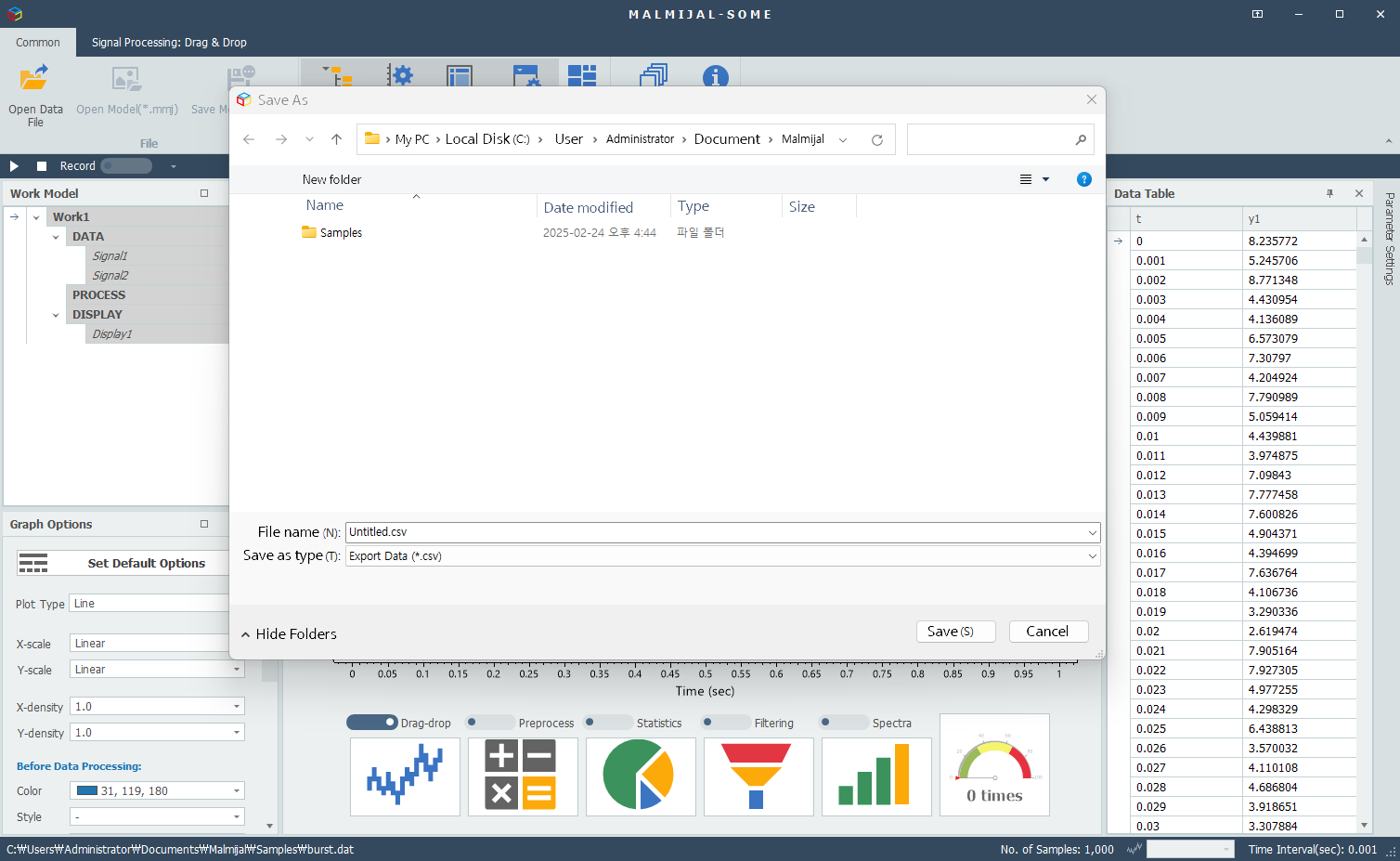

② Save data to a .csv file.

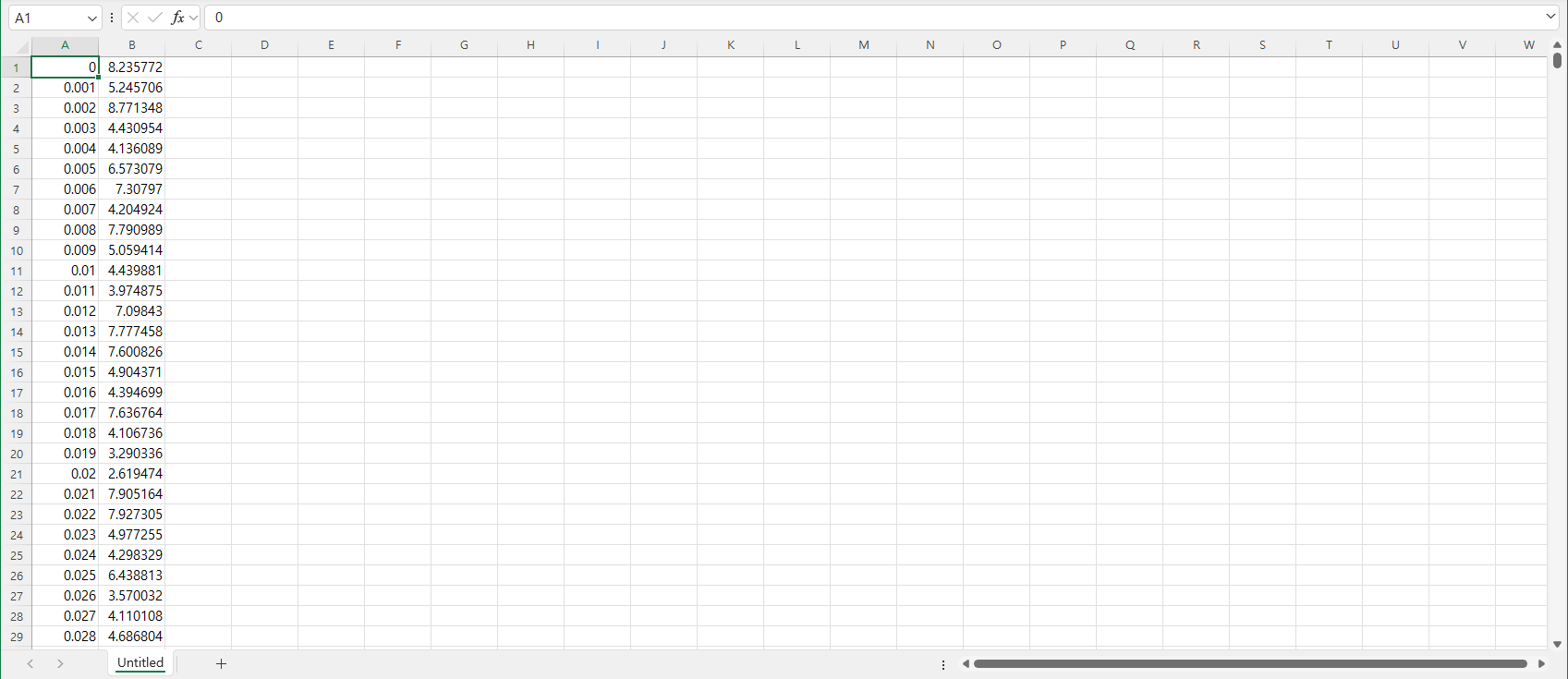

③ Check saved data.
Copy Graphs

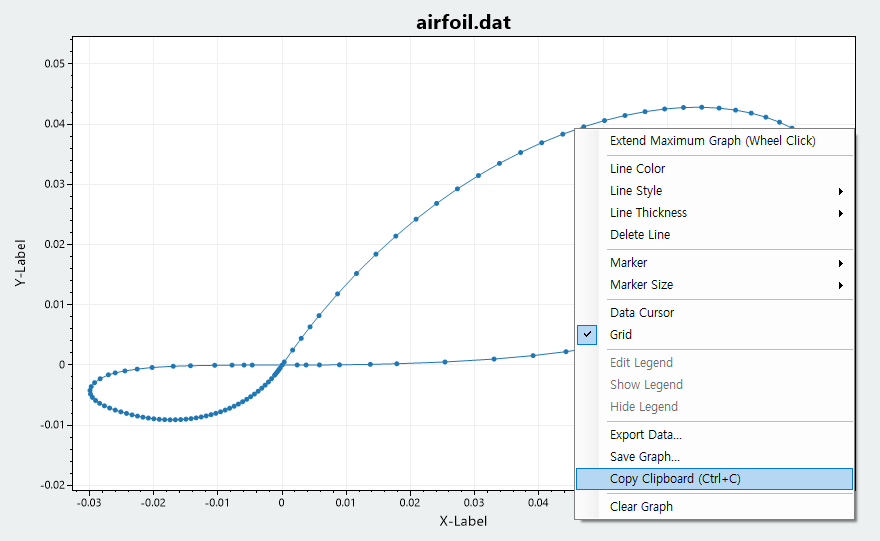

① Right-click on the data drawing window, and select Copy Clipboard. (Shortcut key Ctrl + C)

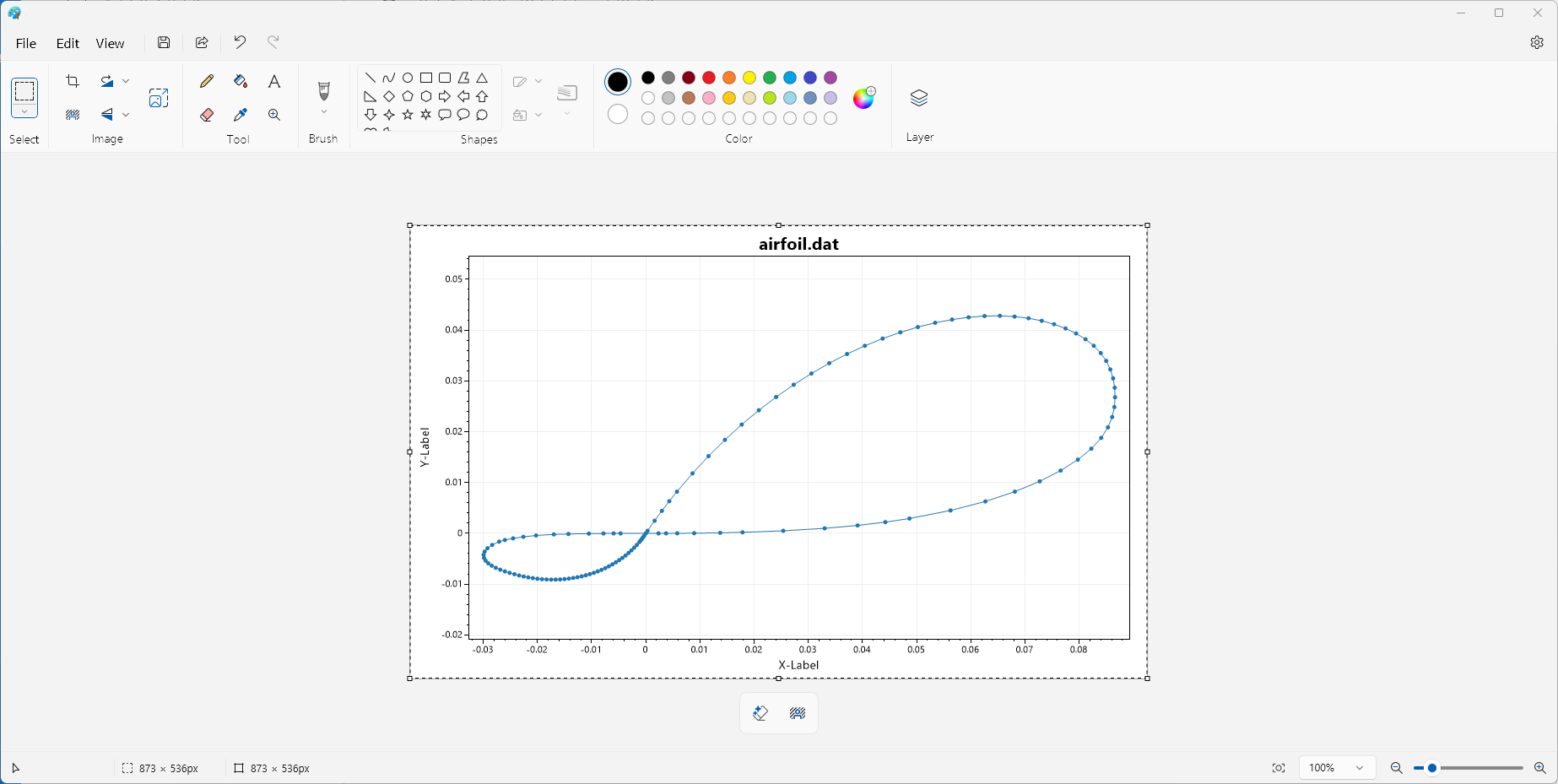

② Paste from desired document. (Shortcut key Ctrl + V)
