Signal Processing, Without MATLAB Pain !


Advanced Signal Processing Without a Single Line of Code.


MALMIJAL-M helps engineers and researchers test multi-channel signal processing ideas faster than MATLAB/Python coding. You may adjust parameters and options — but you’ll never need to write code.


  •  ✔  Multi-channel input or output modeling
  •  ✔ Make processing nodes — no scripting, no debugging
  •  ✔ Filtering / Spectral analysis in minutes

Try MALMIJAL-M Free

(No Signup)

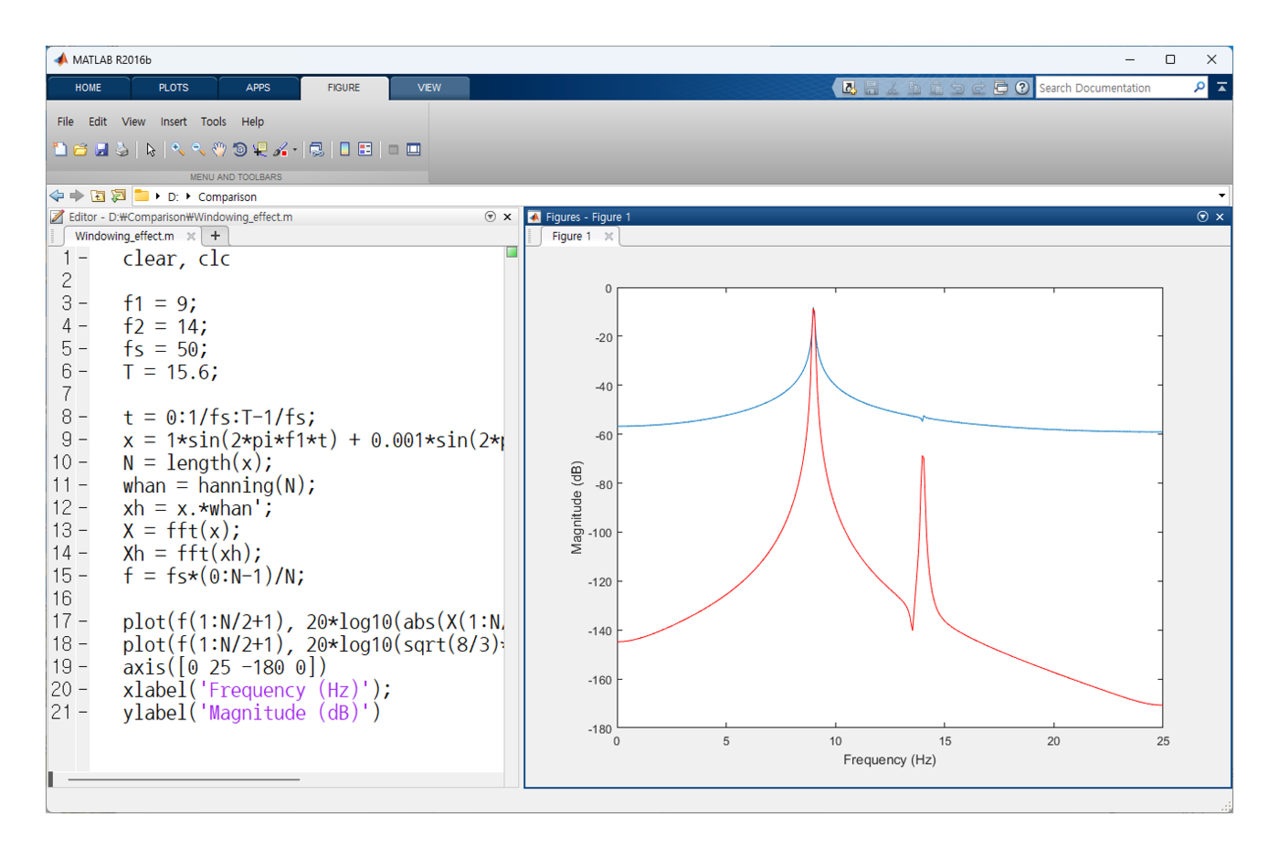

MATLAB (Code)

· Write scripts→ Debug → Plot
· Fast for coders, slow for quick experiments


Play video
MALMIJAL-M (No Code)

· Make model → Adjust parameters →Analyze and Plot
· Built for signal exploration and modeling

Play video

Why MALMIJAL-M?

Most students and engineers don’t want to learn programming just to validate an experiment idea. MALMIJAL-M removes that extra barrier — so you can focus on signal processing itself.

LESS LEARNING OVERHEAD

Stop spending hours on syntax, libraries, and debugging. Build workflows visually and test ideas immediately.

BUILT FOR MULTI-CHANNEL MODELING

MALMIJAL-M includes simple Drag and Drop processing and multi-channel input/output modeling and parameter control.

FULL ACCESS TRIAL

You can try the paid MALMIJAL-M with no feature limits. If it fits your work, you’ll know quickly.

3-step workflow

The goal is simple: faster realization of idea based on data and modeling, with visual models instead of scripts.

1. GENERATE SIGNAL / LOAD DATA

Generate signals such as, Sine, Triangle, Pulse Impulse, Step, Chirp, etc. or load your time signals (multi-channel supported) and start exploring immediately.

Play video
2. BUILD A MODEL

Connect inputs, outputs, and processing nodes (preprocessing, statistics, filtering, spectra) and tune parameters visually.


Play video
3. ANALYZE RESULTS

Apply filtering, spectral analysis such as FFT, PSD , STFT, FRF, Coherence, Octave Band, Order spectrum, etc.  Compare channels, export plots and outputs.

Play video

Features that engineers actually use

MALMIJAL-M is designed for easy realization of your idea — not for writing more scripts.

Modeling mode

Build processing pipelines visually with nodes and parameters. You can save model and load it later.

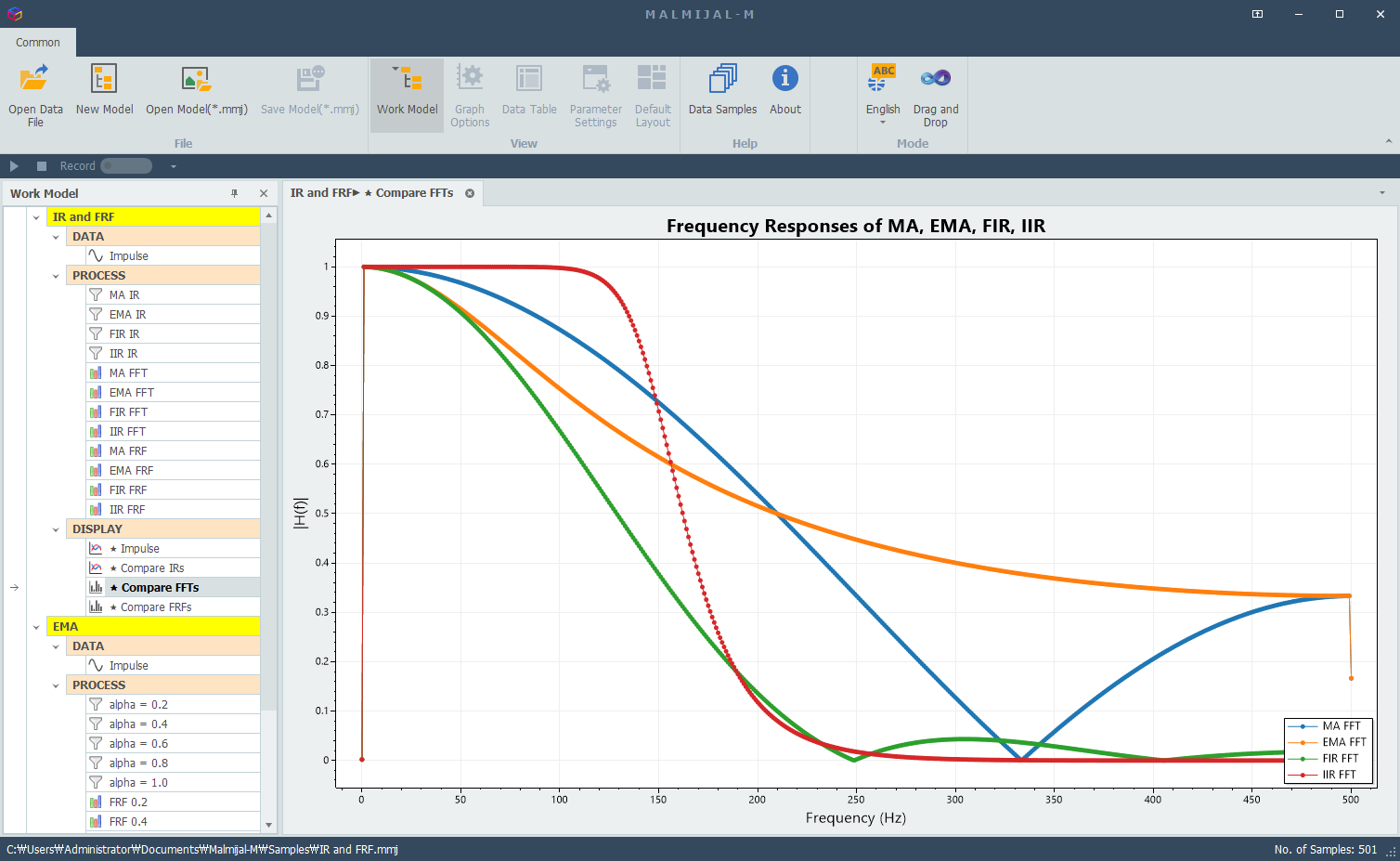

Filtering  (MA / EMA / FIR / IIR)


Apply filters, smoothing like moving average, and preprocessing with adjustable settings. You can adjust filter types, order, cutoff, etc.

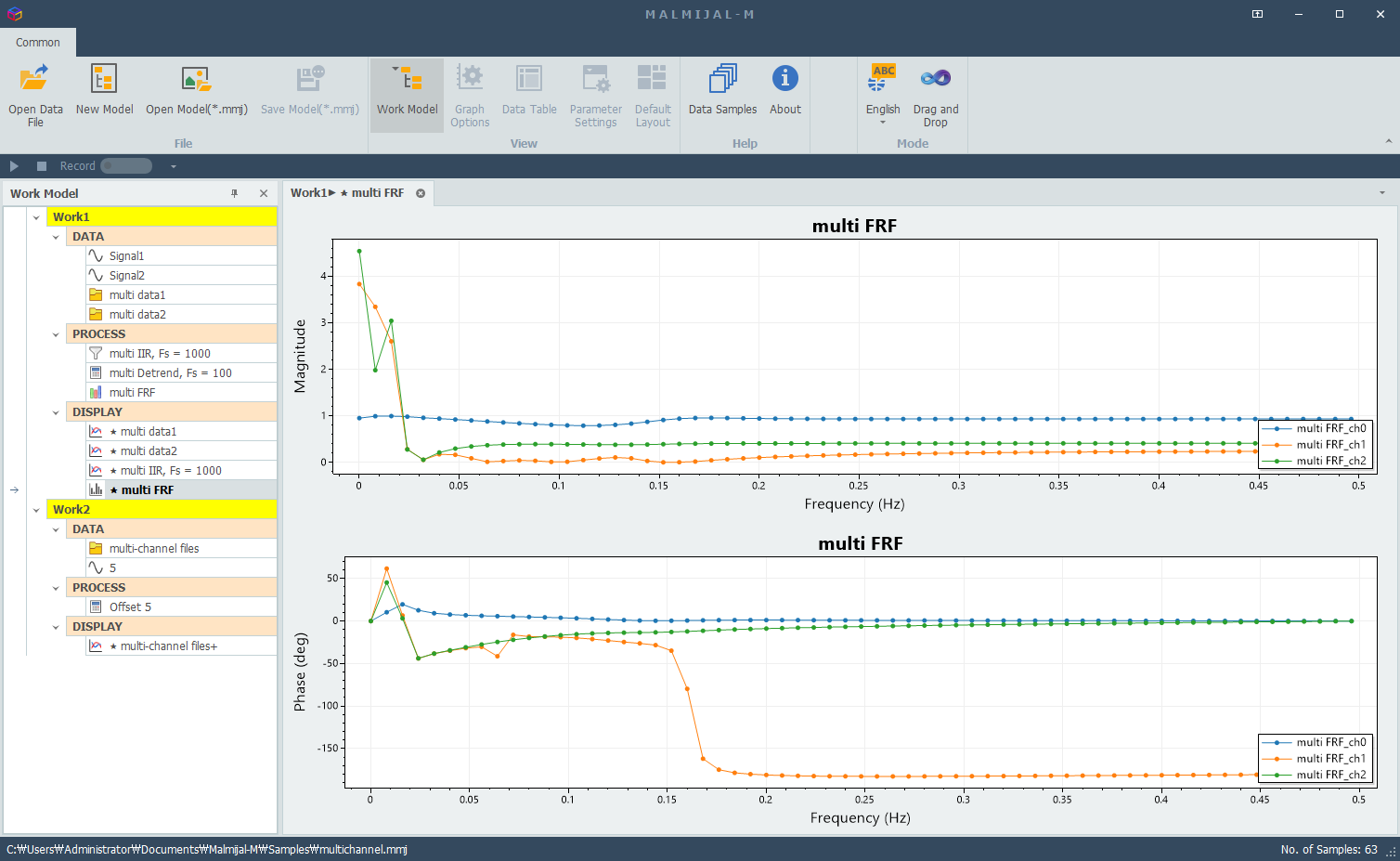

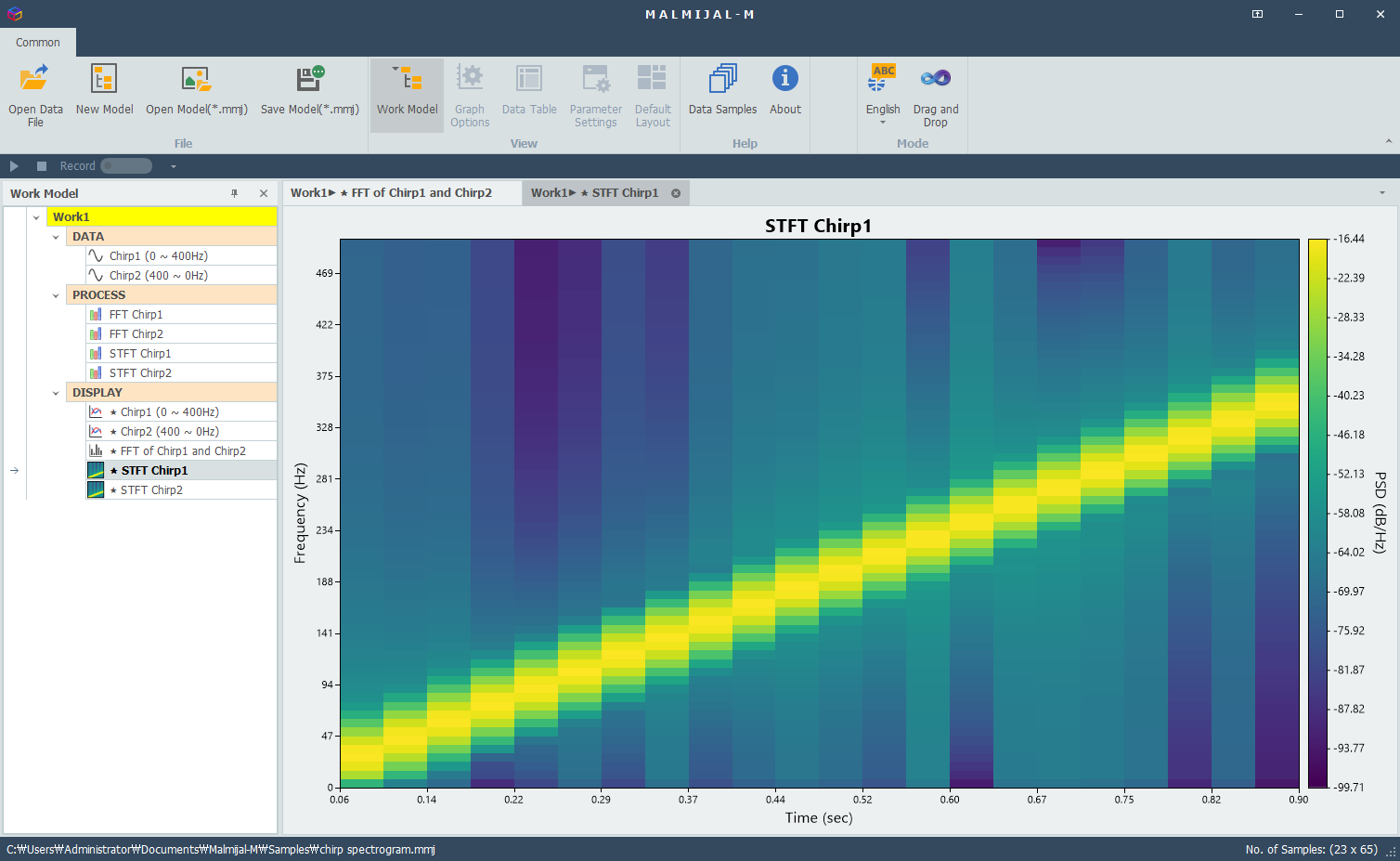

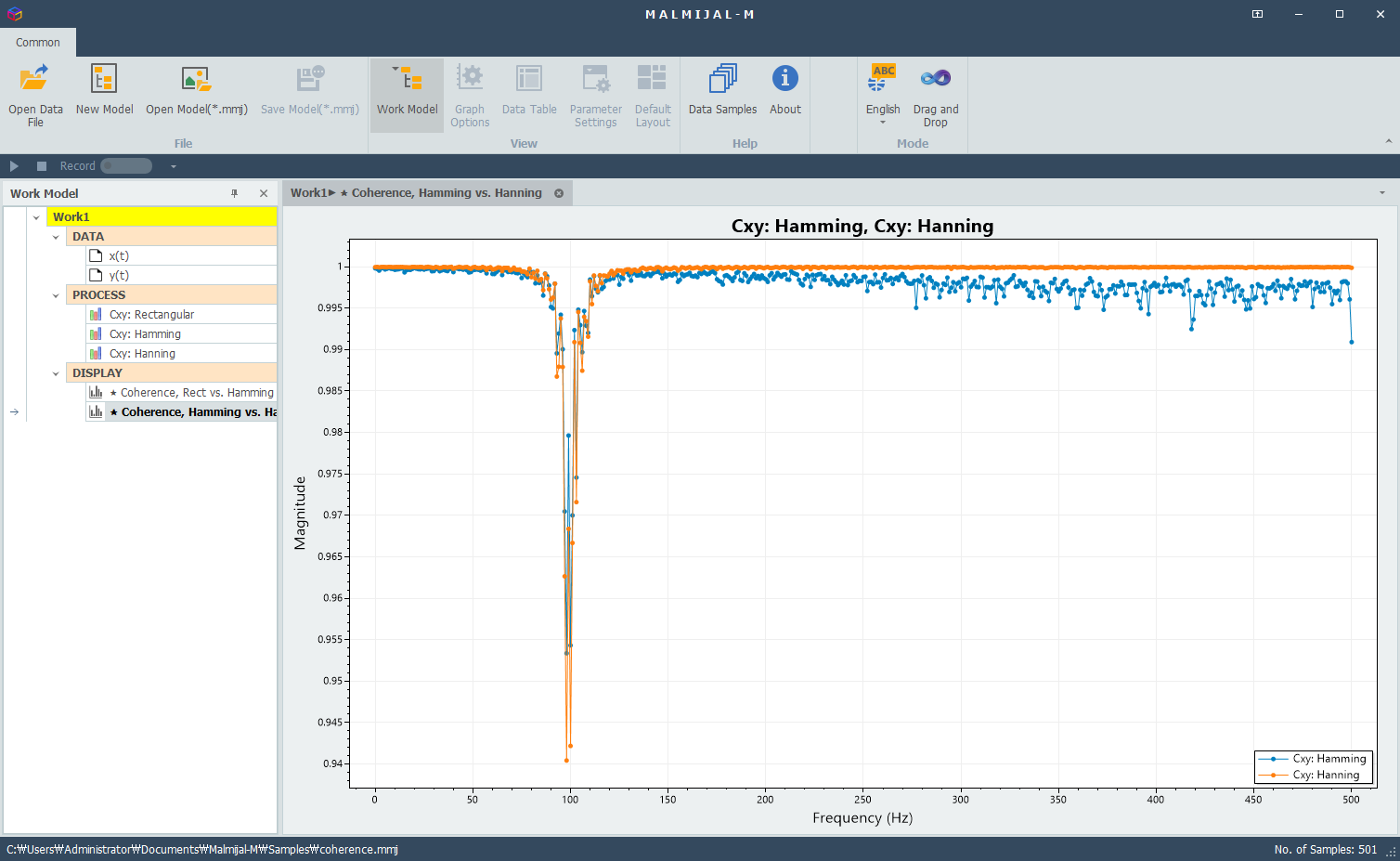

FFT / STFT / PSD / FRF / Coherence


Inspect frequency content quickly with standard spectral analysis tools. You can adjust number of FFT, window types, overlap.

Preprocessing  & Statistics


Peak finding, detrending, resampling, arithmetic operation and statistical analysis like correlation, outlier detection, etc.

Data Modification


Simple statistical analysis like RMS, Min, Max, Mean, Slope and data crop and cut on the plot graph in Drag and Drop mode.

Multi-channel Modeling


You can handle single file with multi-channel or folder having multiple files and analyze multiple data processing simultaneously.

Signal Processing Visualization Platform


No code, No pain! Preprocessing, Statistics, Filtering, Frequency Analysis


FREE DOWNLOAD

Free to download and usable with both trial and licensed versions.
(Windows PC only)


MALMIJAL-M TRIAL

Try MALMIJAL-M free for 7 days and explore all its features with no restrictions.


BUY MALMIJAL-M

MALMIJAL-M is available for purchase in two editions: Commercial version and an Academic/SME version.


MALMIJAL-M (Personal Use)

MALMIJAL-M on Steam, the world’s largest Electronic Software Distribution (ESD) platform.

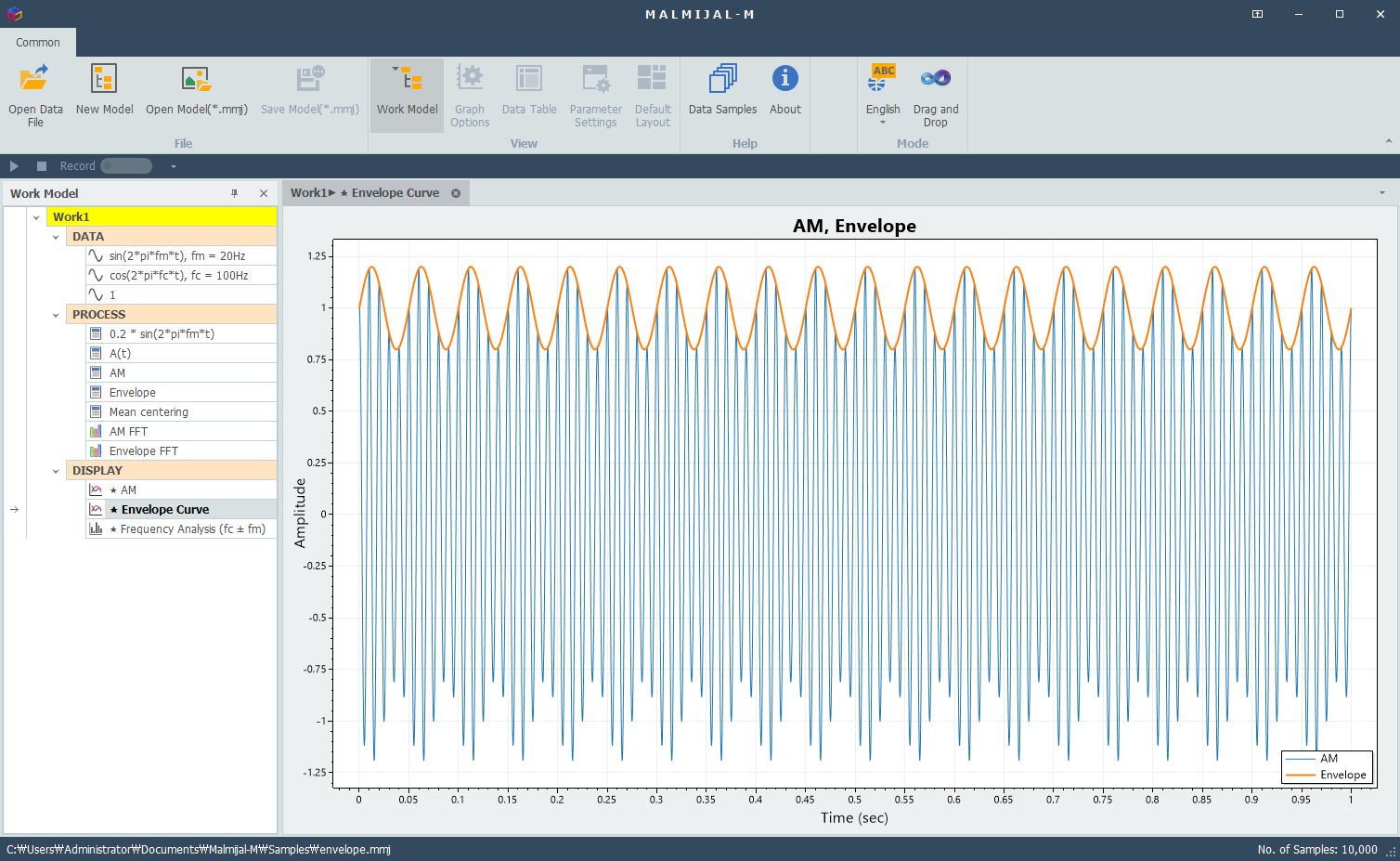

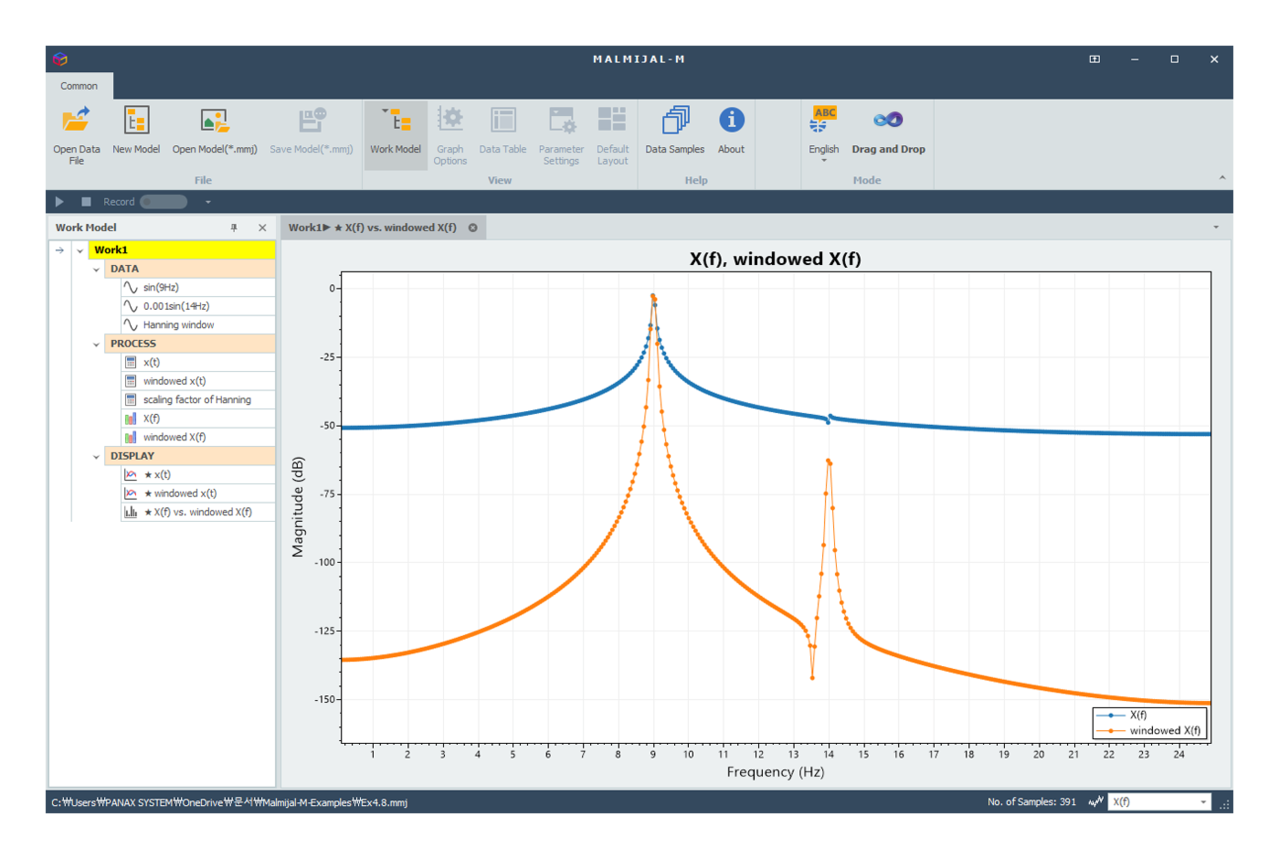

Example screens


MALMIJAL-M is designed for easy realization of your idea — not for writing more scripts.

Example Videos


This video shows MALMIJAL-M’s operations and provides example use cases.


Play video
Low-frequency background noise

After filtering the background noise of whistles, let's check the Fast Fourier Transform (FFT).

Play video
Easy Drag-and-Drop FFT

Make Fast Fourier Transform (FFT) result within 1 second.


Play video
How to Edit Data

Let’s take a look at the data editing features in Drag & Drop mode.


Play video
Mouse & Keyboard Functions

Let’s take a look at how to conveniently use the mouse and keyboard functions.

Notics


Check out the latest updates from MALMIJAL-M.


NOTICE 5
Search
관리자
25 Jan 2026

Update Notes (v2.4.0)


- Data Editing (Crop, Cut, Restore)

- Improvements to switching between D&D Mode and Modeling Mode

- .mmj example files revised and new ones added (from 31 to 45)


※ The update can be applied by downloading and installing it. (Previous version: v2.3.1)

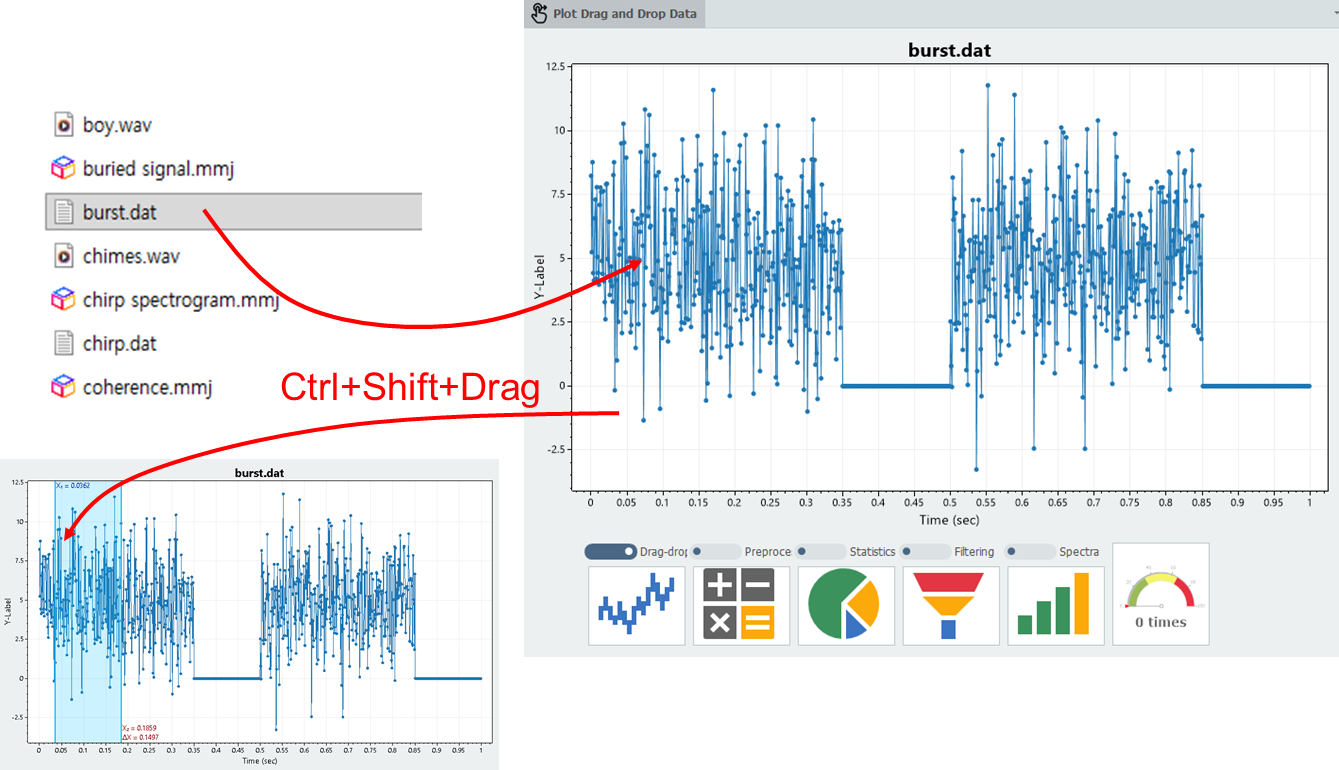

Crtl+Shift Drag : Select Editing Area

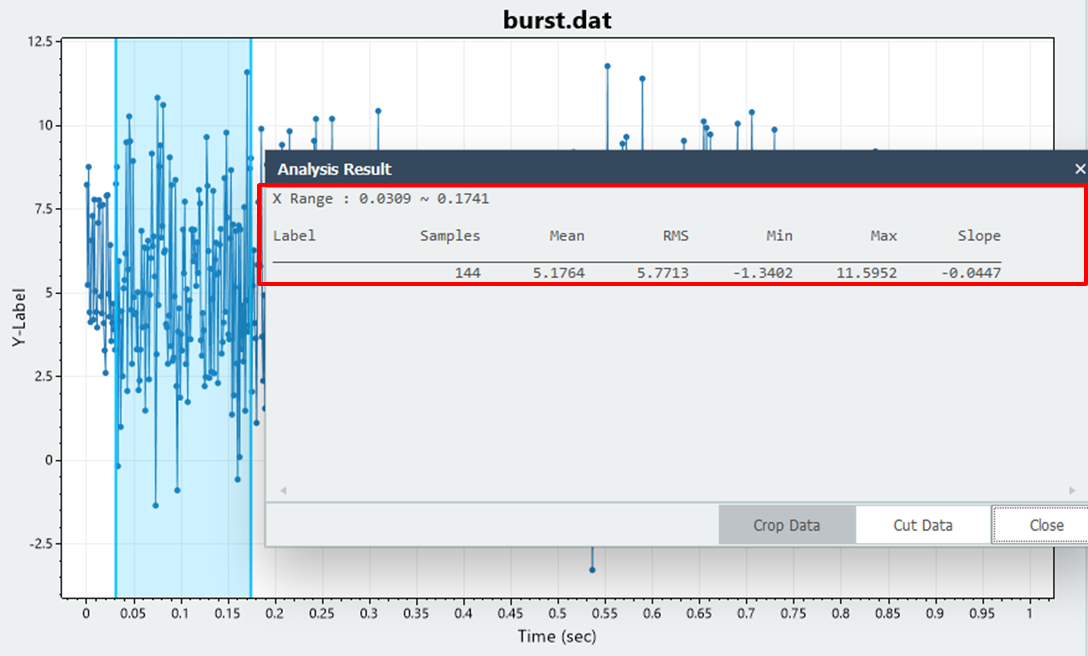

Analysis Information & Crop/Cut Data

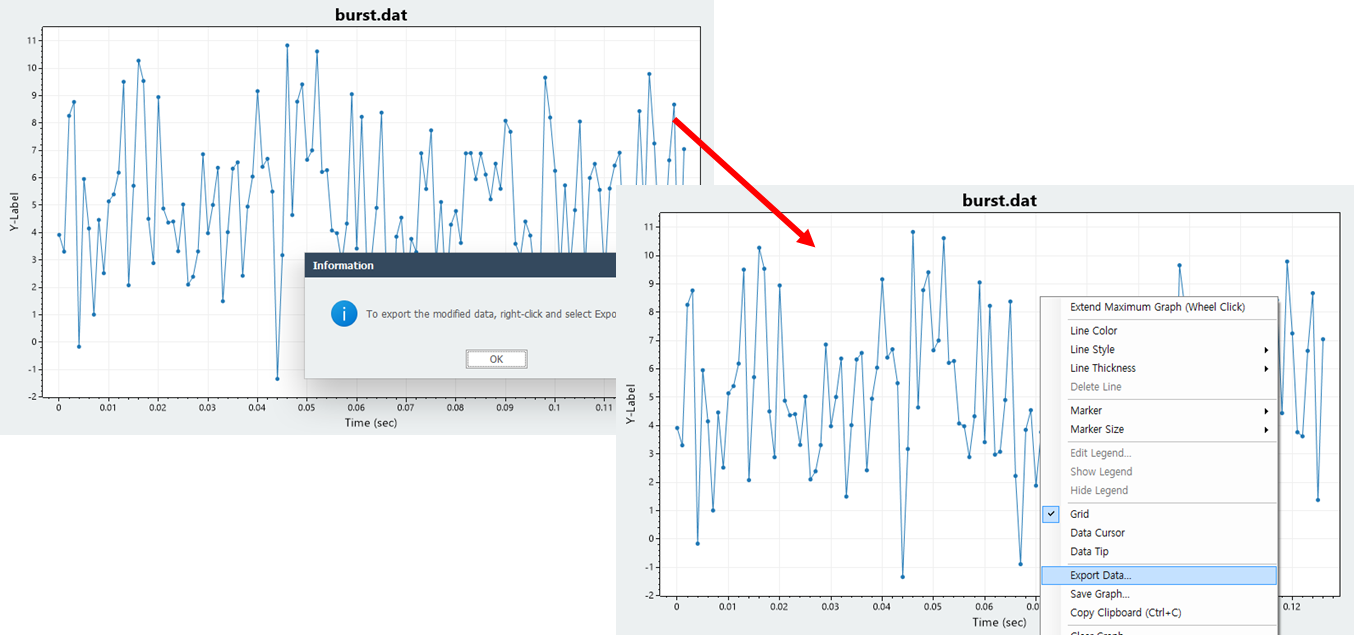

Export Data

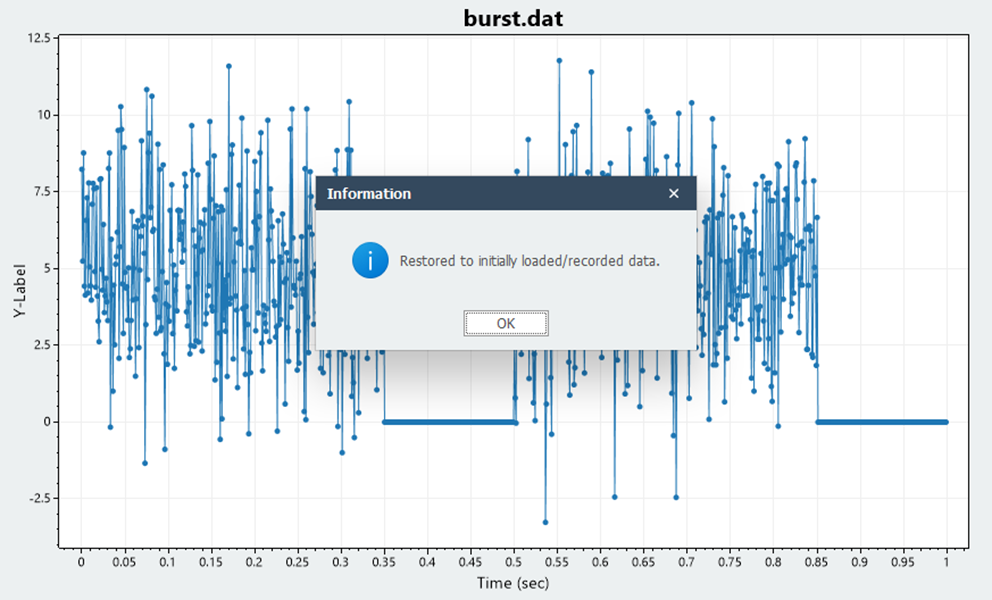

Ctrl+D : Restore Data



관리자
30 Nov 2025

This is the MALMIJAL-M Basic User Manual.
Please refer to the video below.


- MALMIJAL-M Basic User Manual Full version




- MALMIJAL-M Basic User Manual Part 1: Top Menu Overview




- MALMIJAL-M Basic User Manual Part 2: Work Model




- MALMIJAL-M Basic User Manual Part 3: Graph Options




관리자
30 Nov 2025

Update Details (v2.3.1)

- Minor Bug Fix


- Order spectrum Feature Added (Example file: order spectrum.mmj)




- RPM extraction Feature Added (Example file: RPM extraction.mmj)




※ To update, simply download and install it. (Previous version: v2.2.2)

관리자
30 Nov 2025

MALMIJAL-M License Registration Method (OTP: One-Time Password Method)



1. Run the MALMIJAL-M icon



2. Log in to your user account (※ Enter the license email address provided in the additional information at the time of purchase)




3. Enter the code sent to your license email



4. An account verification code (6–8 digits) will be sent to your email.



5. Log in after entering the code


6. Click Accept



7. Verify that MALMIJAL-M is running properly.



8. After closing and logging in again, select the saved license email to launch MALMIJAL.

관리자
17 Sep 2025

Release of MALMIJAL-Modeling


Signal Processing Visualization Platform

- No code, No pain!

- Preprocessing, Statistics, Filtering, Frequency Analysis

- Intuitive signal-processing visualization

- Interactive modeling and analysis

- Ideal for signal-processing education and training

- Automated macro processing through signal-processing modeling — multi-data processing


Key Analysis Features

-Preprocessing

  • Detrend

  • Resampling

  • Polynomial Fit

  • Exponential Fit

  • Arithmetic Operation

  • Differentiation

  • Integration

  • Peak Finding

  • Convolution

  • Envelope Curve


- Statistics

  • Descriptive Statistics

  • Auto-correlation

  • Cross-correlation

  • IQR (Inter-Quartile Range)

  • Z-score

  • PCA (Principal Component Analysis)


- Filtering

  • MA (Moving Average)

  • EMA (Exponential Moving Average)

  • FIR (Finite Impulse Response)

  • IIR (Infinite Impulse Response)


- Frequency Analysis

  • FFT (Fast Fourier Transform)

  • Short-Time FT

  • Power Spectrum

  • Cross Spectrum

  • PSD (Power Spectral Density)

  • CSD (Cross Spectral Density)

  • FRF (Frequency Response Function)

  • Coherence

  • Octave Band Analysis


Drag & Drop Mode

- Easy data handling with drag-and-drop

- Intuitive, interactive interface

- Single-file processing Supported file types:

  • Text files

  • Binary files(*.xlsx, *.mat, image files such as *.jpg, audio files such as *.wav)

- View the Drag & Drop Mode tutorial video


Modeling Mode

- DATA → PROCESS → DISPLAY workflow for data-processing modeling

- Multi-channel, multi-file processing

- Save and load modeling configurations

- Customizable data processing and visualization

- View the Modeling Mode tutorial video
